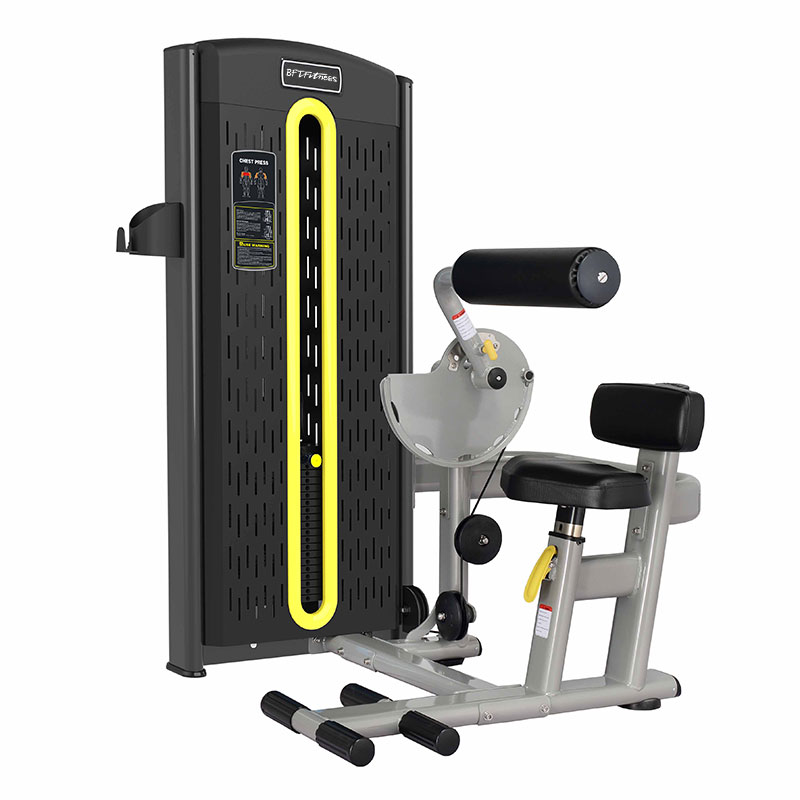

Abdominal Crunch

Model : BFT-A10

The BFT-A10 is a commercial abdominal crunch trainer. It is a special product for exercising abdominal muscles. Luxurious and fashionable.

♦ Weights impart resistance, allowing the proper load to be adjusted to each individual's needs.

♦ Unique equipment design allows users to make natural flexion movements to achieve optimal abdominal muscle contraction.

♦ Prevention and care of spine and joint problems.

♦ Improve body posture.

  • +86-20-36078553

  • +86-18027318690

  • admin@bft-fitness.com

  • Wechat QR code

TARGET MUSCLES

abdominal crunch exercise machine



PRODUCT FEATURES

Scientific design brings reasonable structure, simplified and generous look to the unit while quality rectangular tubes used for frame are wellwelded and assembled to bring safety and durability.The movement trajectory complying with the principle of ergonomics and scientifically distributed quality steel cables bring high degree of comfort and safety.

Shroud perfectly protects users from weight plates and further enhances usage safety.High-end bearings used for links bring smoother movements.Reasonably designed handgrips with high degrees of comfort make it easy for the users to exert themselves and then bring smoother movements.



USAGE GUIDANCE

1. Read all warnings and notices prior to using the equipment.

2. Adjust the seat height using the adjustment lever located at the front of the seat. Sit straight with your back against the back cushion.

3. Insert selector pin into weight stack at a suitable resistance level.

4. Grasp handgrips with both hands and push them forward till both arms are straightened.

5. Pause for a moment, and then return to the starting position slowly. Repeat the movement.

Technical Specifications

Main tube Flat elliptical tube 120*50*3.0mm、100*50*2.5mm & 80*40*2.5mm,round tube 60mm
Gantry frame Rear cover & Front cover: 3mm metal casing;
Head cover: ABS material;
Hand Grips Iron core with diameter of 32mm, outer layer of PU anti-slip gloves, both ends are equipped with aluminum alloy decorative covers
Lifting rod 25mm diameter hard chromium steel
Instruction icon Size: 300*800mm; Material: PVC;
Product instruction icon, detailing product training parts, operating instructions and precautions
Load accessories Stainless steel guide rod: diameter 25*1.5mm;
Pulley: Hardened integrated PP pulley or aluminum alloy;
Steel wire rope: 7-core imported steel wire with an inner diameter of 5.8mm, the maximum use load is 220 KG
Counterweight device Guide Rod:With magnetic aluminum alloy head;
Weight Stack:Cold drawn steel Q235 with cushion & Imitation noise buffer pad
Cushion Three-layer material structure, bottom iron plate, open mold silicone pad, imitation ground PU leather
Seat Flat tube 80*40*2.0mm stainless steel configuration
Bearings Luoyang LYC or imported high-speed bearings
Size 1265*1230*1650mm
GW/NW 202KG/192KG
Weight steel  60kg Q235
Function & Muclse Rectus abdominis, obliquus abdominis, latissimus dorsi, etc
Fit area Professional gym and club
Seat color red, brown, yellow, black PU/PVC/ leather
Port GuangZhou HuangPu port
Packaging Details
1) wooden case with assemble package
2) plateform with unassemble package
3) assemble package with EPE foma and bubble film
Delivery Detail Stock available within 7 days  , No stock 15days-30days
