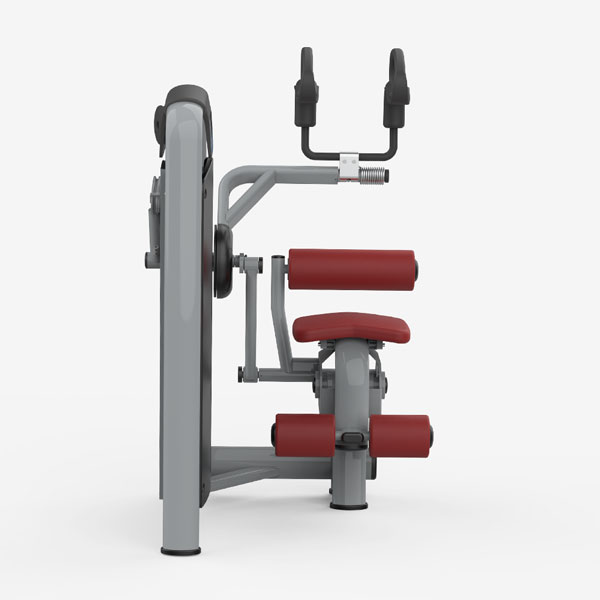

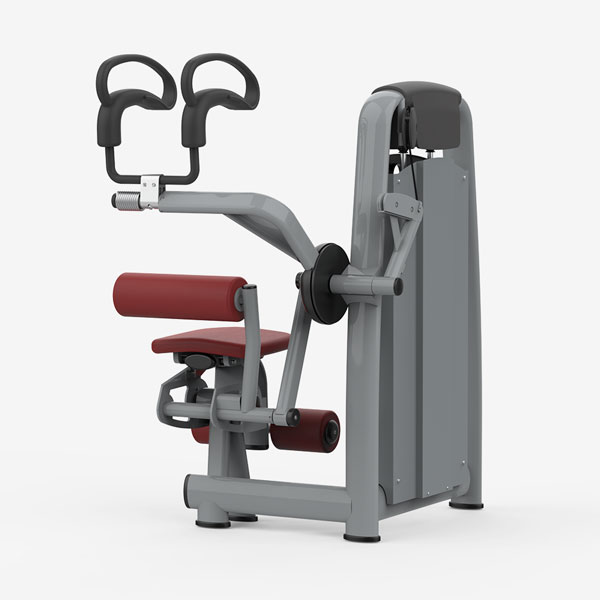

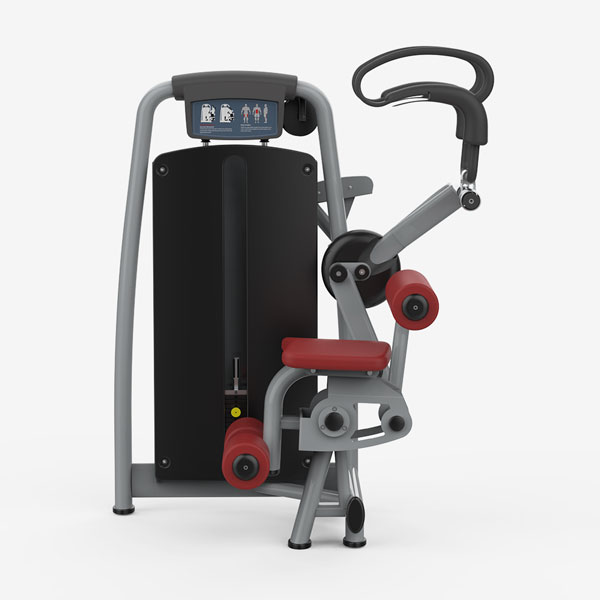

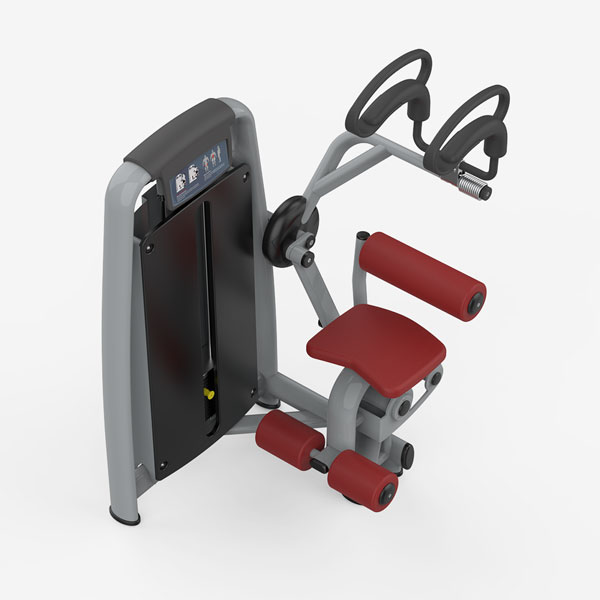

Total Abdominal

Model : BFT-2012

BFT-2012 is a commercial total abdominal trainer. Specialized product for working the abdominal muscles and hip flexors. Classic Technogym shape design, the gantry is in the shape of an n, which highlights Technogym's independent personality, bold and not lacking in beauty.

Practice seated with your back and legs resting on pads. Bend your torso forward, bringing your shoulders close to your knees. Weights impart resistance, allowing the proper load to be adjusted to each individual's needs.

♦ This device increases the movement of the abdominal wall muscles by touching the hip flexors.

♦ Innovative exercise arm allows practitioners to achieve overall stability without adjustment.

♦ The backrest ensures pelvic stability and separation of the abdominal muscles.

♦ Prevent and care for joint problems of spine and pelvis, improve body posture.

+86-20-36078553
+86-18027318690
admin@bft-fitness.com

Weight Stack and Guide Rod

High-quality stainless steel weight stack, with shock-absorbing plastic pads between each weight stack, can effectively reduce the noise of collisions.

Users can quickly adjust the weight by using the guide rod according to their own conditions.
There is a magnetic steel ring on the inside of the guide rod head to prevent vibration and fall, bringing an extraordinary safety experience.

Frame construction

2.5-3mm thick steel is used, and the solder joints at the joints are full and firm, with full strength.

After grinding, rust removal, polishing, and double-baking paint spraying, the equipment is not only novel, but also resistant to aging and oxidation.

Rubber cover with Fitness sticker

With clear instructions, fitness sticker use illustrations to easy to explain the correct use of the muscles and training.

All the covers made from high quality soft rubber, durable, no deformation.

Seat Cushion Adjustment and Seat Cushion Material

The seat cushion height adjuster uses an advanced atmospheric compression spring, allowing you to easily and quickly adjust the position.

The seat cushion is filled with high-density foam film, and the outside is covered with high-quality PU leather that is wear-resistant and does not fade.

Seat cushion color can be customized.

Seat cushion back plastic guard

Using natural rubber or PU, plus iron core dip molding.

Wear-resistant and sweat-resistant, giving you a good fitness experience.

Foot Platform

Equipped with high-quality engineering plastic pedals, soft texture, elastic, non-slip, anti-collision, and no rust.

Hand Grip

It is effectively and completely isolated from the outside air, and water vapor cannot pass through, preventing sweat from permeating the equipment and rusting. High strength and easy to clean.

Belts and Pulleys

The pulley is made of nylon mixed with glass fiber, which has low friction coefficient, wear resistance and self-lubricating property.

Combined with steel kinematic bearings, force transmission is silky smooth!

Wire rope

Imported from Japan, the outer layer is made of high-grade wear-resistant and environmentally friendly PU leather, and the inner layer is 7 strands, a total of 105 316LHS stainless steel wires, with a maximum tensile force of more than 1500KG, super durable, safe and secure.

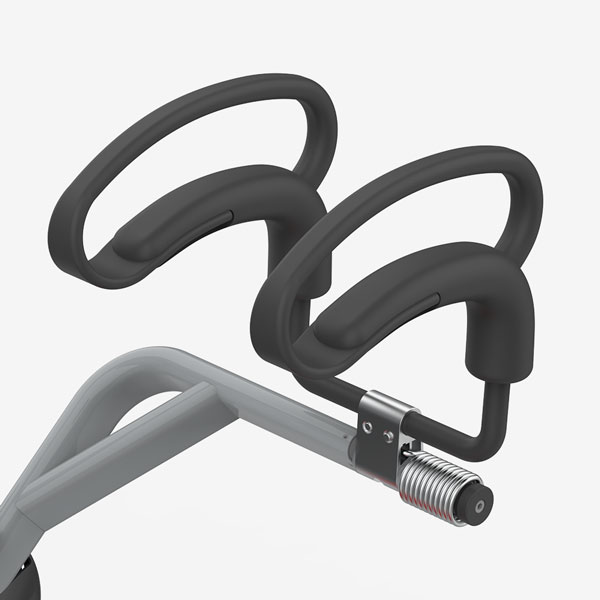

Shoulder hoop

It is made of high-quality rubber, which is anti-sweat and anti-skid, comfortable and durable, and is equipped with a large spring.

Foam baffles

The cylinder design is filled with high-density foam film, which conveniently hides the built-in spring latch, which can be adjusted to the appropriate position according to the length of your calf.

Technical Specifications

Material Qualification	Main tube: SPHC high-quality steel, thickness 2.5-3.0mm, with quality inspection report; Seamless tube: cold drawn steel Q235; Guide Rod: Hardened chrome plated rod and stainless steel.
Processing method	All pipes and plates are cut by automatic laser cutting; welding is done by automatic fixture welding machine to ensure accurate angle and beautiful connection.
Surface treatment process	Using physical high-pressure sandblasting process, environmental protection, degreasing and rust removal, and increasing surface adhesion.
Surface spray process	The car-type powder spraying and baking method is used, two electrostatic powder spraying, and two high temperature baking paint at 200 degrees Celsius.

Main tube	Olive nuclear tube 120603.0mm, round tube 60*3.0mm
Gantry frame	Rear cover: stamping and forming of 3mm steel plate; Front cover: ABS material; Head cover: PP material, consistent open mold forming
Hand Grips	Iron core with diameter of 32mm, outer layer of PU anti-slip gloves, both ends are equipped with aluminum alloy decorative covers
Load box	Completed by POM material CNC lathe, polished and formed, the wire groove is smooth and wear-resistant, and the maximum working load is 220 KG
Instruction icon	Size: 650*280mm; Material: PVC; Product instruction icon, detailing product training parts, operating instructions and precautions
Load accessories	Stainless steel guide rod: diameter 25*1.5mm; Pulley: Hardened integrated PP pulley or aluminum alloy; Steel wire rope: 7-core imported steel wire with an inner diameter of 5.8mm, the maximum use load is 220 KG
Counterweight device	Guide Rod：With magnetic aluminum alloy head; Weight Stack：Cold drawn steel Q235 with cushion
Seat/Back Cushion	Three-layer material structure, bottom iron plate, open mold silicone pad, imitation ground PU/PVC leather
Training Cushions	Dip molding of natural rubber or CPU and iron core
Cushion adjustment	Double-sided 4-lever adjustment plate and two-way air lever device
Bearings	Luoyang LYC or imported high-speed bearings

Muscles Worked	Rectus abdominis, internal oblique, latissimus dorsi, etc.
Size (L x W x H)	1260 x 960 x 1590mm (49.6" x 37.79" x 62.59")
GW / NW	230 / 220KG (507.06 / 485.01 lbs)
Weight Stack	Standard weight: 80KG (176.36 lbs) Maximum weight: 100KG (220.46 lbs)
